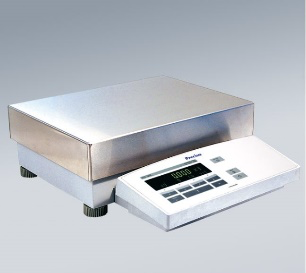

Series 490 Industrial Scales
Series 490 Industrial Scales
The Series 490 Industrial Scales are robust, precision industrial scales. With large, bright vacuum-fluorescent display, extended counting and memory functions, statistical programs. Optional specialized counting or FPVO regulated packaging verification.
Description
Weighing Range: 12100g to 62000g Dual Range & Floating Range
Readability: 0.1, 1g and dual range
Linearity: <=+/- 0.5 g
Reproducability: <=1g
Weighing Platform: 400 x 300 mm
Protection: IP65 optional
Data Port: RS232/ V24 bi-directional
Calibration: SCS Internal standard
Display: VFD standard
Applications: Enhanced = Count or FPVO specialty
Operating Temperature: 0-40°C
Power Consumption: 85-240 VAC 50-60Hz 13 VA
For certificates and quality assurance, view here.
Highlights
- ICM (intelligent Calibration mode), automatic recognition of external calibration weights.
- Anti-theft lock code
- Password protection for stored programs
- Clock with date and time
- Logging of the measuring results in conformance with ISO and GLP
- Configurable printing protocol
- RS232/V24 / Precisa-Bus Interface
- Capacity display
- Stored user configuration (UMM – user menu Memorized)
- Protective cover
- User-friendly multi-function terminal standard on this line
- Keypad (10 keys)
- 4 directly programmable function keys (freely selectable)
- Add-on alphanumeric Keypad (30 keys), Smartbox is built-in on ISK models
- Lo-Go-Hi visual indicator lights (red/green/yellow)
Integrated application programs
- Selectable weight units switching
- Counting feature
- Percent weighing
- Net total calculation
- Sum computation
- Weight per unit-area computation
- Live animal weighing
- Density determination
- Statistics program
- Weighing control
- Multiuser Memory (MUM)
- Differential weighing
- Dynamic weighing
- Minimum Sample Weight (MSW) setting
- Lift correction (BEST)
- Manual tare input
Specialty Programs – FPVO
- Monitor filling compliance to finished packaging regulations (FPVO)
- 500 article memory
- 500 daily/weekly statistics memory
- Tare averaging
- Stored Machine Identification code
- Printer format definition
- Memory Protection
Specialty Programs – Counting Models
- Extended counting and memory functions
- 1000 article memory
- 250 entry tare memory
- Nominal and limit values
- Weighing Summation computation
- Printer format definition
- Memory Protection
Features and applications
Features
Swiss made- Vacuum fluorescent display
- Self-Calibration-System
- Easy alphanumeric input
- RS232 interface for PC / printer
- EU/OIML type approval
- Support IQ/OQ/PQ
- Anti-theft protection
- Clock (printout GLP/GMP, auto-cal, etc.)
- Below balance weighing
Applications
- Variety of measurement units
- Percent weighing
- Piece counting
- Animal weighing
- Check weighing
- Net total application: Add up summation
- Free conversion Area conversion
- Statistics
- Recorder
- Dynamic weighing and differential weighing (weighing on ship)
- Minimum sample weight according to USP
- Automatic repeatability test
Model-specific apps and features

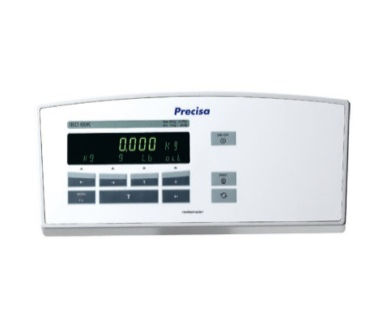

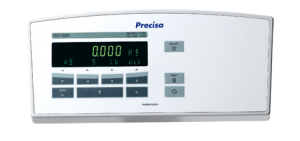

IBK
Terminal:
- User-friendly indicator.
- Standard keyboard layout with 10 keys. 4 freely definable function keys.
- Large digital display, 20 digit display information line. Vacuum fluorescent display.
- Weighing-in guide +/-

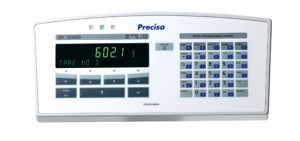

ISK COUNT
Terminal:
- Multi-application indicator for special applications.
- Additional keyboard with 30 keys for alphanumerical inputs for manual tare and reference weight input.
- Vacuum fluorescent display.
- Weighing-in guide +/-
- All applications as per Indicator IT and additional SmartBox
Counting: advanced parts counting with multiple memory functions
Extended counting and storage functions with 1000 product storage positions, 250 stored tare-weights, nominal and tolerance values. Totalization, definition of print format, memory protection.
Additional applications:
 | DEN: Density determination |
 | MBW: Multilevel back weighing |
 | DDW: Dynamic difference weighin |
 | MSW: Minimum sample weight |

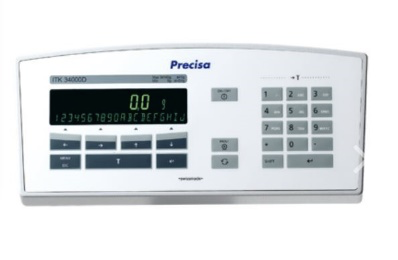

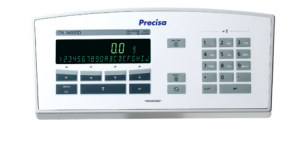

ITK
Terminal:
- User-friendly, multi-application indicator.
- Additional keyboard for alphanumerical inputs for manual tare and reference weight input.
- Vacuum fluorescent display.
Additional applications:
| DEN: Density determination |
| MBW: Multilevel back weighing |
| DDW: Dynamic difference weighin |
| MSW: Minimum sample weight |

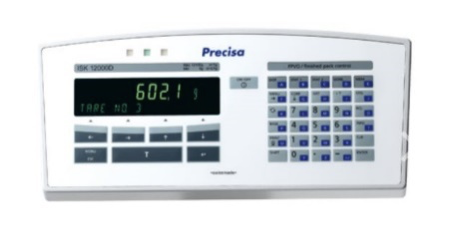

ISK FPVO
Terminal:
- Multi-application indicator for special applications.
- Additional keyboard with 30 keys for alphanumerical inputs for manual tare and reference weight input.
- Vacuum fluorescent display.
- Weighing-in guide +/-
- All applications as per Indicator IT and additional SmartBox
FPVO: Check and reference weighing of finished products during the production process.
Establishing under or over filling using 500 article storage positions, 500 daily and weekly statistics, average tare weight calculation, machine identification, print format definition, memory protection.
Additional applications:
| DEN: Density determination |
| MBW: Multilevel back weighing |
| DDW: Dynamic difference weighin |
| MSW: Minimum sample weight |
Accessories
Specific Accessories
- Wall bracket for terminal

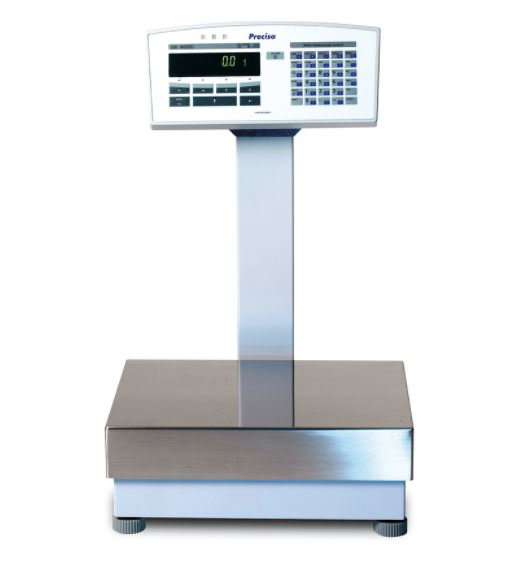

- Post for rear mounted display
- Connection-cable indicator to platform, length 3 m
- Connection-cable indicator to platform, length 5.5 m
- Connection-cable indicator to platform, length 10 m
- Below the balance weighing feature up to 40 kg
- Below the balance weighing feature IP65 version up to 40 kg
- External USV accu power pack
- Dust cover for the whole balance, set of 20 pieces
General Accessories
- Printer CBM910 230V, incl. data cable and paper roll
- Printer CBM910 115V, incl. data cable and paper roll
- Paper roll for Printer CMB910
- Ribbon for printer CMB910
- Multiplexor for up to 7 balances of the series 165/320/321/360/490 for serial (RS232) data transmission to PC or printer (at least one balance has to be of the series 320/321)
- Data cable RJ45, length 0.75m
- Data cable RJ45, length 1.5m
- Data cable RJ45, length 3m
- Adapter RJ45 / DB9 f, (to PC)
- Adapter RJ45 / DB25 m, (to printer)
- Data cable RJ45 / DB9 f, length 1.5m, (to PC)
- Data cable RJ45 / DB25 m, length 1.5m, (to printer)
- HID cable, RS232 / USB (x: 0=e, 1= d, 2=f)
- UPS (uninterruptible power supply), external
- Anti-theft device, mechanical
- Bowl for diamonds (carat bowl)
Options
- Initially verified according to 2014/31/EU by Precisa, available for balances with EC(/OIML) type approval and SCS only
- Protection IP65: protection against ingress of dust and low pressure water jets, fitted at factory
PrecisaBUS Accessories
- Remote display, freestanding, with cable, length 1.5m
- Remote display, mounted to the wall, with cable, length 3 m
- RS232 interface box for data transmission, DB25 f:
– to PC, printer or bar code printer
– from bar code reader (350-8856) or reference balance - Interface box, current loop, 20mA, passive
- Analog output box, -10V .. +10V, resolution 10mV
- Ethernet box, wired
- Ethernet box, wireless
- Signal lamp, indicator with 3 lamps; red, green and yellow
- Horn for signal lamp
- I/O box with 6 TTL inputs and 8 relay outputs
- CCE bar code scanner BCS5040, DB25 m, to be connected by meanings of the RS232 interface 350-8506
SmartBox Applications
- SmartBox piece counting with stored values and article numbers
- SmartBox packing control, FPVO
- CCE barcode reader BCS5040 with push button and plug, connects to the SmartBox® (Connector RJ45)
Models
Models: | Capacity: | Readability: |
IBK 12000D | 12100 g | 0.1 g |
IBK 18000D | 18100 g | 0.1 g |
IBK 24000D | 24100 g | 0.1 g |
IBK 34000D | 34100 g * | 0.1 g |
IBK 34000D-DR | 12100 g / 34100 g * | 0.1 g / 1 g |
IBK 34000D-FR | 12100 g – 34100 g * | 0.1 g / 1 g |
IBK 20000G | 20100 g | 1 g |
IBK 30000G | 30100 g | 1 g |
IBK 40000G | 40100 g | 1 g |
IBK 60000G | 60100 g | 1 g |
* Approved up to max. 30100g
